Top-Speed Shaping Machine
Unrivaled Speed, Superior Quality: Achieve unparalleled output of 90,000 pencils per hour. Our system delivers flawlessly smooth finishes, exceptional stability, and premium quality – all at a significantly better price.
Multi-color Logo Printing machine
Color freedom! Logo can be printed in unlimited colors, clear and distinct. High speed > 30,000 pcs/hour
AI Slat Checking / Sorting Machine
Top quality, high efficiency, suitable to all kinds of slats. Fast speed 10,000 pcs/hour, one machine could save 6 people.
AI Pencil Checking machine
High efficiency, save much labor cost, high speed 30,000 pcs/hour

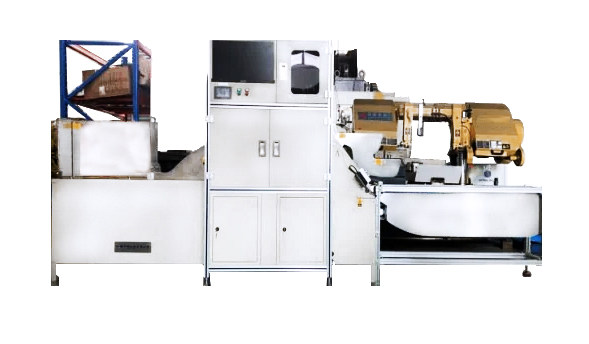

AI Painted-Pencil Sorting machine
High efficiency, save much labor cost, high speed 30,000 pcs/hour

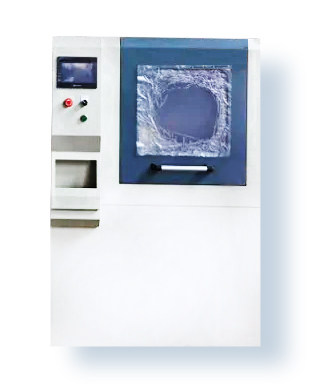

High-efficiency Cutter Sharpening machine
Sharpen the carbide blade. 4 pcs of the cutter blade can be set up at same time. 74mm / 80mm cutter blade
AI Pencil Pointed Testing machine
It integrates advanced detection technology to efficiently and reliably identify common tip defects such as breakage, eccentricity, and deformation. With strong adaptability, it accommodates a wide range of pencil shapes and specifications, delivering highly accurate and consistent results. This system is your reliable partner in achieving automated quality assurance, helping to enhance production efficiency and product uniformity for modern pencil manufacturing.
Six station monochrome rotary screen printing
1.The machine body is welded from high-quality gantry steel, paired with high-end components such as Mitsubishi PLC, Delta servo, and Hiwin ball screw guide rails, making it sturdy, durable, and precisely positioned. 2. The servo drives the screen to move up and down and print left to right, working with the turntable for accurate positioning and suction to hold the product, achieving clear printing, precise placement, and fast speed. 3. Equipped with a robotic arm for automatic loading and unloading, LED cold light source for instant curing, and off-net screen washing function, it operates stably and efficiently, greatly improving continuous work efficiency.

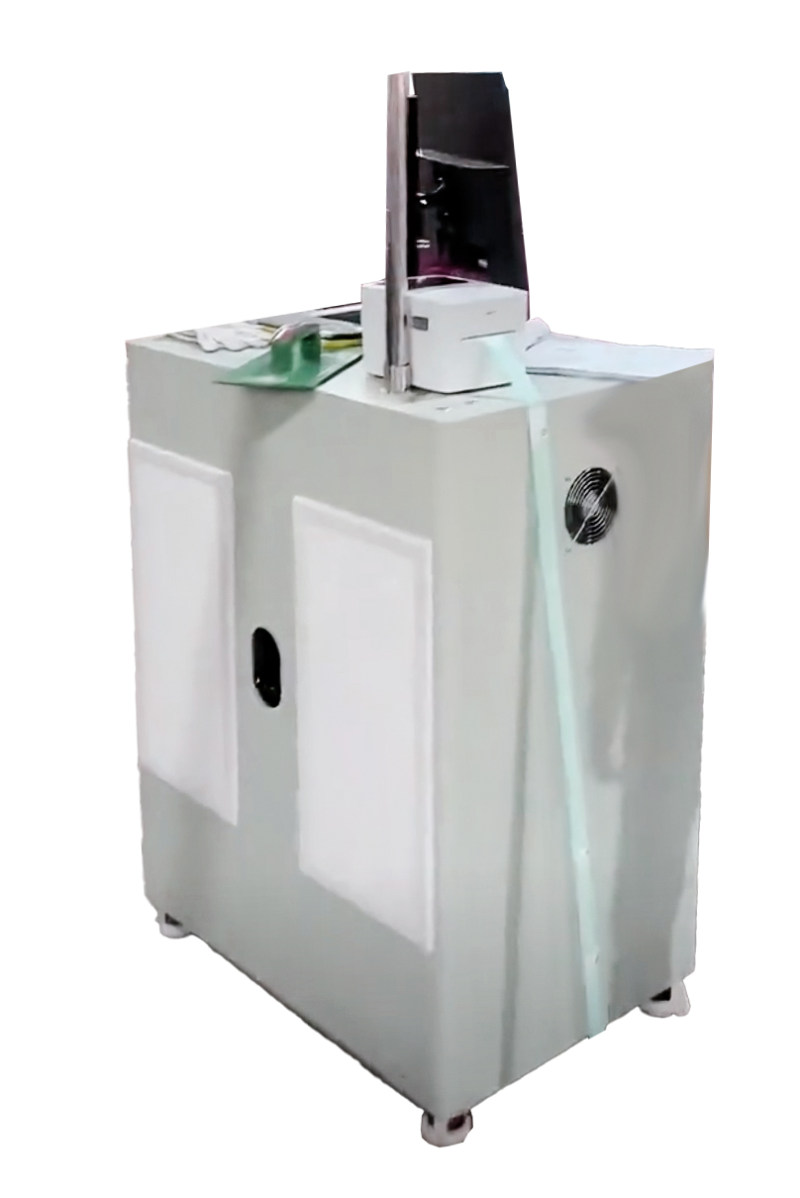

AI Pencil Counting machine
Utilizing advanced optical sensing technology, it performs simultaneous counting for two pencil trays in just one second. Renowned for its precision and stability, the system integrates seamlessly into production lines, providing real-time and reliable quantity data. It effectively eliminates the inefficiencies and inaccuracies of manual counting, serving as an intelligent solution to optimize production management and packaging operations.

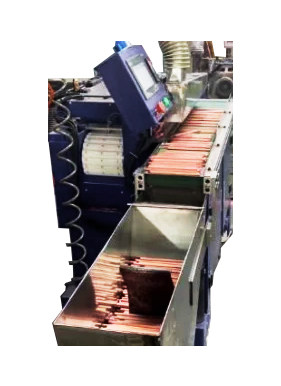

Pencil Hot - Polishing machine
Suitable for polishing all kinds of pencils, speed 580-645 pcs/min.

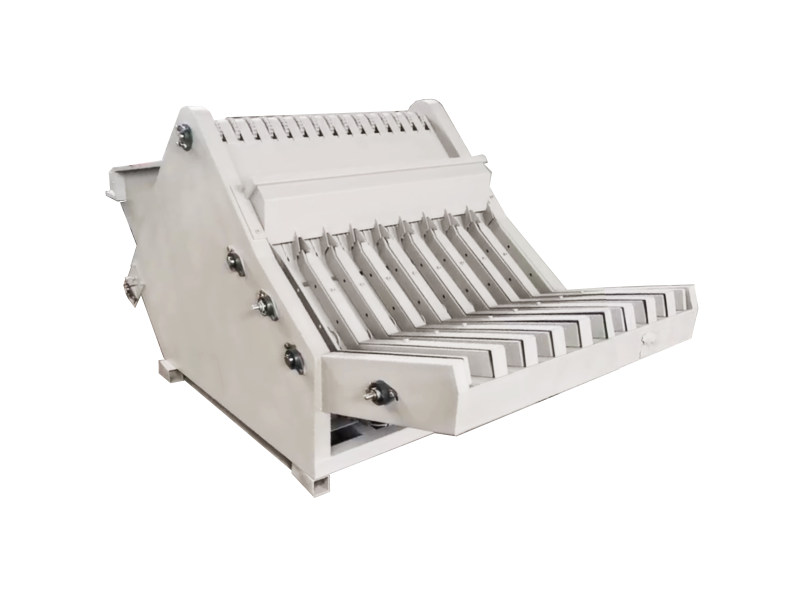

Slat Stacking machine
This machine is designed to streamline the post-production handling of slat-type materials. It rapidly and efficiently automatically organizes and stacks scattered incoming slats (e.g., wood panels, spacer boards) into neat, stable, and uniform piles. With reliable operation and consistent stacking results, it significantly reduces manual labor while enhancing storage and transportation efficiency.

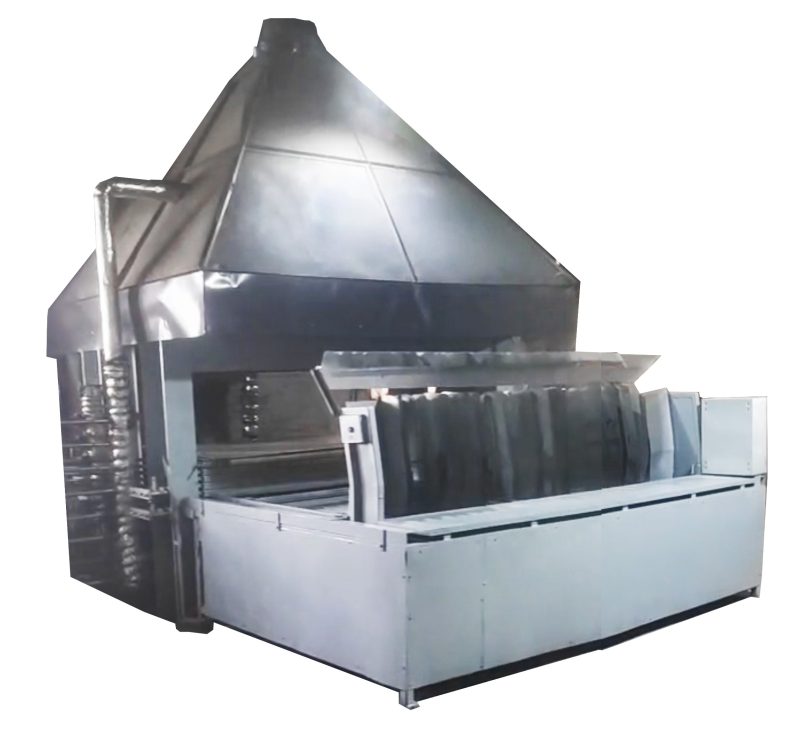

Slat hot-pressing & drying machine
It features adjustable pressure control and effectively treats various woods, including basswood, poplar, and jelutong, increasing material utilization by 20% to 35%. It is particularly adept at high-pressure, high-temperature shaping of warp-prone boards, ensuring optimal flatness and effectively preventing warping in finished pencil slats. The machine combines high safety, low maintenance, stable and quiet operation, and energy efficiency.
Automatic crayon moulding machine
The Automatic Crayon Moulding Machine automates the entire crayon forming process, delivering a high output of 440–520 pcs/min and accommodating 50–90 mm crayon lengths for large-scale continuous production. Powered by 3-phase 380V and 4kg air pressure, it operates stably with controlled energy use .it flexibly fits various production layouts, significantly enhancing efficiency and automation in crayon manufacturing.
Crayon paper rolling machine
The Crayon Paper Rolling Machine automates the wrapping and cutting processes for crayons. It achieves a high production rate of 280-350 pcs/min, and is compatible with crayon diameters of 6-15mm and lengths of 50-90mm. Featuring a three-roller synchronized wrapping mechanism, it ensures precise and stable operation. With a compact footprint (1.3×1.0×1.3m)
Automatic crayon packing machine
The Automatic Crayon Packing Machine automates the boxing and sealing of finished crayons, delivering an output of 23–27 boxes/min and accommodating crayons with diameters of Ø6–Ø15 mm and lengths of 60–120 mm. Powered by 3-phase 380V and 7.0 Mpa air pressure, it operates stably with secure sealing. With a compact footprint (4.85×0.9×1.65 m) and a light weight of 1000 kg
Transparent Film Packaging Machine
This machine uses BOPP/PVC film to form sealed six-side transparent packs, ideal for high-end packaging in food, pharmaceutical, and cosmetic industries. It performs automatic wrapping, sealing, tear-tape application, and U-notch cutting, delivering aesthetic, moisture-proof, and anti-counterfeit packaging. Energy-efficient and versatile for standalone or inline use, it is a superior alternative to traditional shrink wrappers.
Eraser Extruder
In order to make users feel more at ease, the technicianshave developed a set of latest preparation schemes based onthe actual operation in the eraser manufacturer. This preparationcan make the extruder longer life and higher output. The erasereffect made makes our customers more satisfied. The preparation is as follows: Screw: L/D ratio 1:25mm Rotation speed: 0-85r/min, no need for secondary granulation,can melt any color you need at one time Square reducer: ZLYJ145 is durable, has low noise and does not leak oil Cast aluminum heating ring: 3 setsCentrifuge:3 sets, 240W,200VElectrical appliances: RKC temperature controller, nationalstandard Dz47 Motor: 22kW, 4 poles Inverter: 15kW can achieve power saving functionType 85 output 1.5 tons in 10 hoursThe above output depends on the raw materials of thecustomer's products.
Fully automatic cross striper
This instrument is to install the drawing paper on the smooth metal ring plate of the cross-scribing instrument, then insert the pencil into the pencil clip and tighten it, adjust the clamping position to keep the mechanical rod balanced, so that the lead can mark the drawing paper to ( Draw lines at a speed of 45-55) mm/s, draw 15 lines at a time, each line length is 60mm, and the spacing is 1.5mm. After drawing 15 lines each time, rotate 45° in sequence and continue to draw lines, a total of four times. . Take a square with a side length of (25±1) mm in the middle of the stitch as the sample paper.
Eraser Tensile Tester
This machine is specially used to test the tensile strength of eraser on pencil.
Dedicated Scribing Tester
This machine is suitable for testing the initial writing performance of various types of pens. During testing, first install the pen to be tested into the corresponding fixture, then place a 60g special weight on top of the fixture, adjust the fixture angle so that the pen forms a 50°–70° incline with the writing paper, set the line-drawing speed to simulate freehand straight-line drawing, and after the test, check whether the line marks meet the relevant requirements
Pencil Lead abrasion meter
This instrument is suitable for testing the wear resistance of pencil lead. The motor drives the drum to rotate, and the digital display touch screen displays the number of times. After reaching the set number of times, it automatically stops and the wear value is read directly on the dial indicator.
Pencil Lead slip tester
This machine is used for pencil lead sliding tests. During the test, a specified load is applied to the pencil lead with a certain pusher for 5 seconds, and it is observed whether the lead moves within the pencil body. This instrument tests the pencil lead by loading a certain force with a certain thimble for 5 seconds, and observes whether the pencil lead moves in the pencil barrel.

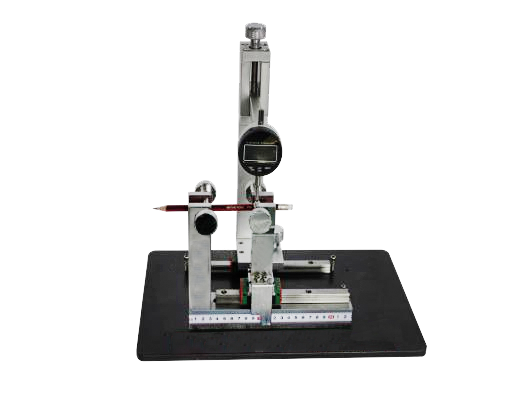

Bending Tester
This machine is used for detecting bending and deformation of ballpoint pen and pencil barrels.

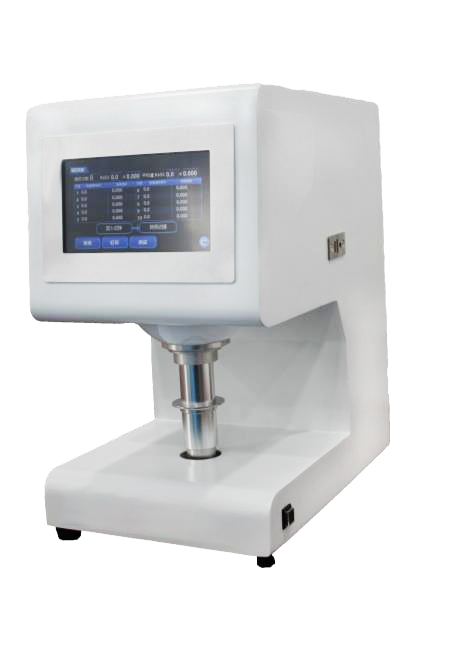

Pencil Lead concentration meter
This instrument is used to measure the concentration of pencil lead. That is to measure the reflected optical density of the scratch mark of the lead on the designated sample paper (use the symbol “d” to represent the reflected optical density: d=Lg1/R450, where R450 is the diffuse reflection brightness factor of the sample for blue light with a wavelength of 450nm, that is, under certain lighting. Under certain conditions, in a given direction, the ratio of the sample’s reflected light brightness to the ideal diffuse reflected light brightness under the same conditions)

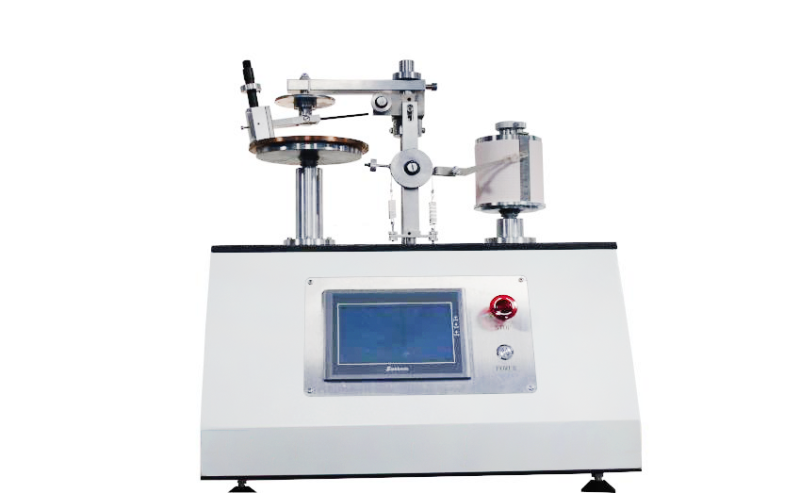

Pencil Lead Smoothness Meter
Standard: QB/T2774-2006 Article 5.3 This machine is used to test the wear resistance of pencil and pencil lead writing under a certain displacement

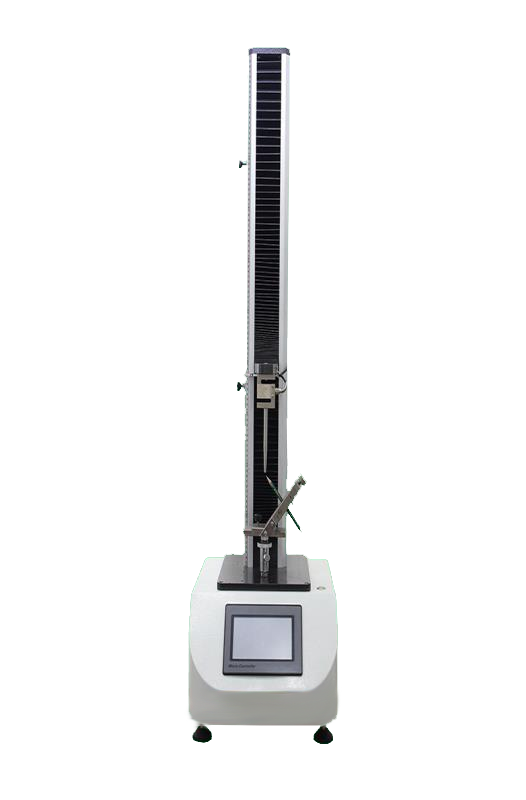

Tensile And Pressure Comprehensive Testing Machine
This machine is a comprehensive testing machine for stationery compression and tension tests. It can test the tip force of pencil leads, the breaking force of pencil shafts, the bending resistance of crayons, the bending resistance of oil pastels, and the clamping firmness of student compasses, and it can be equipped with corresponding fixtures based on the samples being tested.

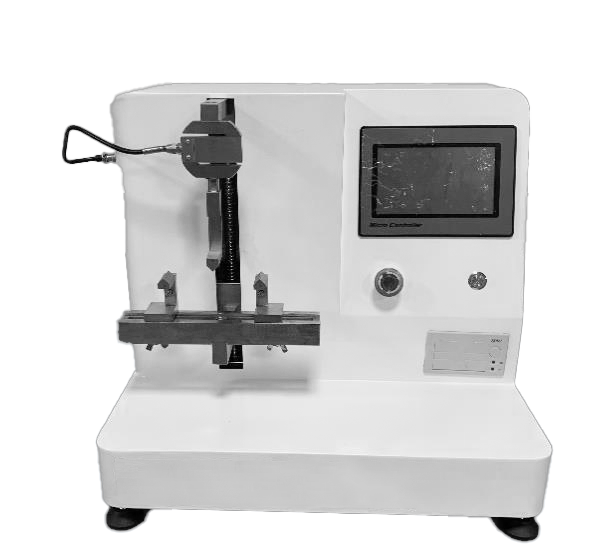

Pencil Lead Core Micro-strength Tester
This instrument is used for the following tests： Pencil lead tip stress test: A sharpened pencil is installed on a 45-degree holder. The force on the lead tip when it is damaged; Pencil lead bending strength test: Place the lead on a "V" shaped bracket, place a knife edge above the bracket, and test the force value when the lead breaks.

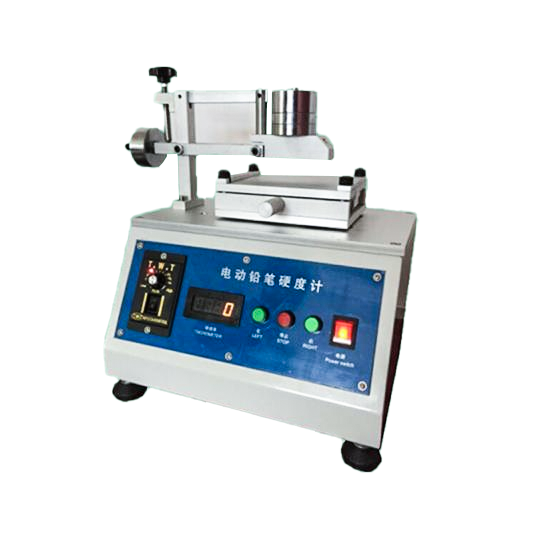

Electric Pencil Hardness Tester
Use hardness pencils to scratch the coating surface to test the surface hardness of the coating layer. The tip of the pencil lead in contact with the coating surface, and an appropriate load is applied. Move the test platform at a certain speed so that the coating surface passes under the pencil tip. The hardest pencil grade that does not cause damage (scratches) to the coating surface can be considered as the hardness of the coating layer.

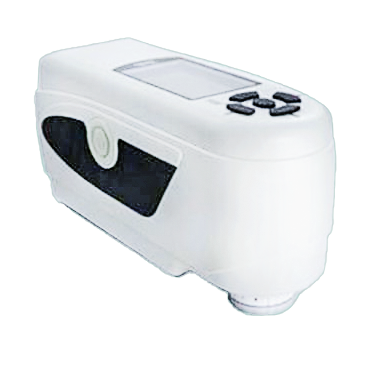

Laptop Color Difference Meter
This machine is used to test the color difference of various parts of pencils and fountain pens.

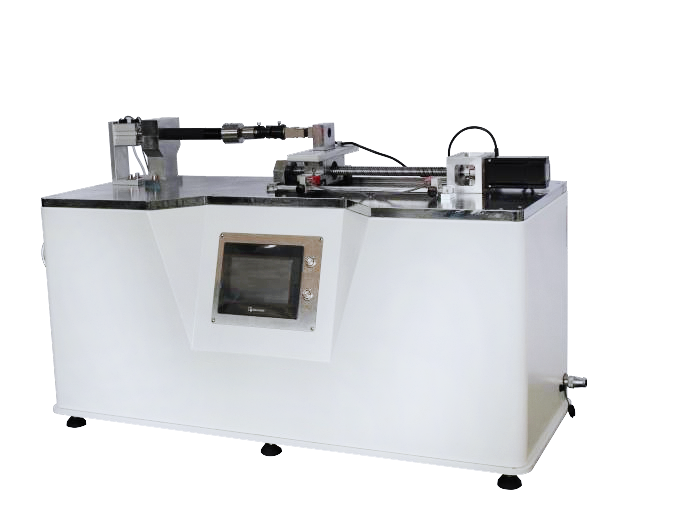

Pencil Pen Binding Fastness Tester
A key feature of this unit is its digital torque display, which allows for simple and accurate data reading and retains the display of the maximum torque value, thereby enabling the precise setting of tool torque. It offers high testing accuracy, with a deviation of no more than 5%.

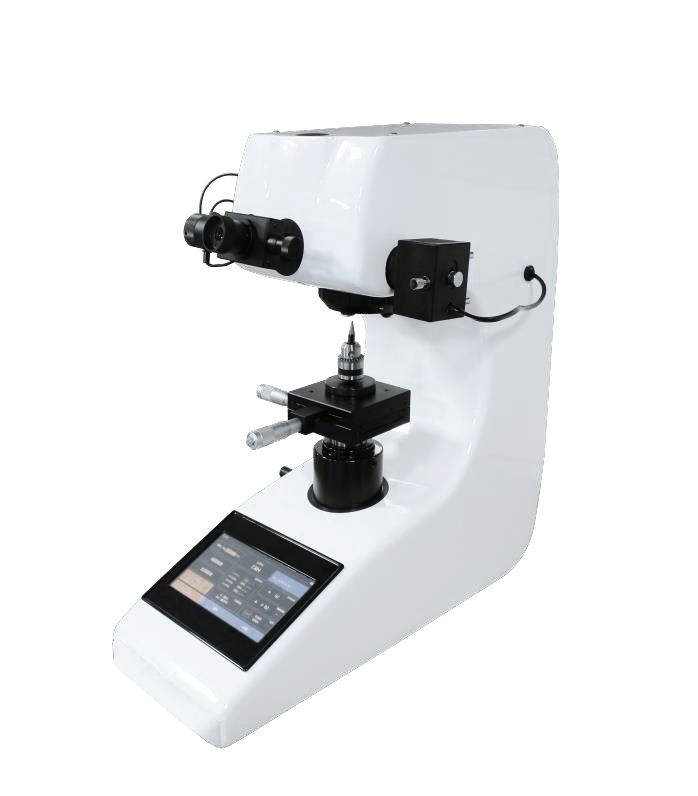

Pencil Lead Microscopic Hardness Tester
This instrument is designed for testing the hardness of pencil leads. Equipped with a specialized fixture developed in accordance with standard requirements for lead hardness testing, it is capable of directly determining the Knoop hardness value of the lead.

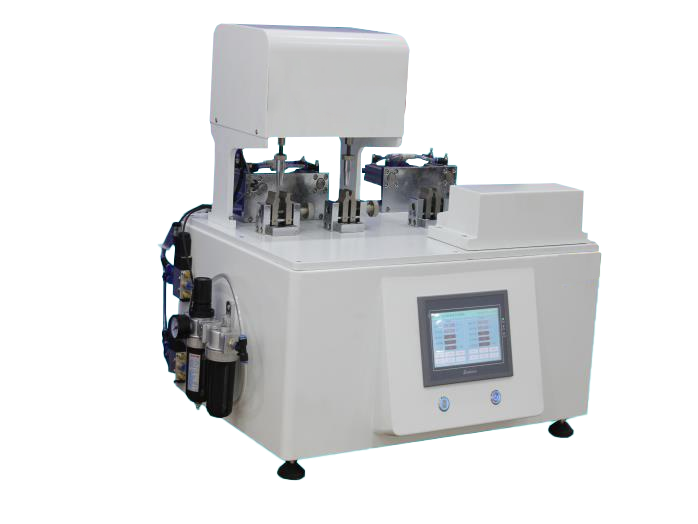

Active Pencil Fatigue Tester
This machine is used to test the durability of active pencils. After a certain number of pressing fatigue tests, it can still meet the requirements for pencil clamping force and lead feeding performance.
_r__854-475_c__cccecf_.png?x-oss-process=style/thumb_png_small)
Pencil Lead Continuous Circle Writing Tester
This machine is to load the pencil or refill with a 300g load (or set it yourself), so that the pen and the writing paper are directly facing at an angle of 90 °, and the circle is drawn to the set number of meters at a certain speed, and check whether the stitches meet the requirements specified in the product standard, and whether the wear value shown on the dial gauge is qualified.
_r__515-768_c__c6c6c6_.png?x-oss-process=style/thumb_png_small)
Digital dynamometer
The digital display push-pull force meter is a universal portable push-pull load testing instrument. It is suitable for push-pull load testing, plug-in force testing, damage testing, etc. of various products. It can be combined with various instruments and fixtures to form small experiments for different purposes. instrument.
